Level Controller Series: RS-02 Model: 08

Description

DEWAG make conductivity level controller utilises the electrical current conducting property of the medium whose level is to be detected. Normally two electrodes are installed in a container/tank. One electrode is set at the bottom of the tank and is called a REFERENCE electrode. The other electrode is set at the point where the level is to be detected. When the material touches this electrode, an electrical current flows between these electrodes . This current is sensed and an electronic circuit actuates an electro magnetic relay, which controls the external control devices. This type of level control gives only ON / OFF output. It is possible to have level indication at more than one point.

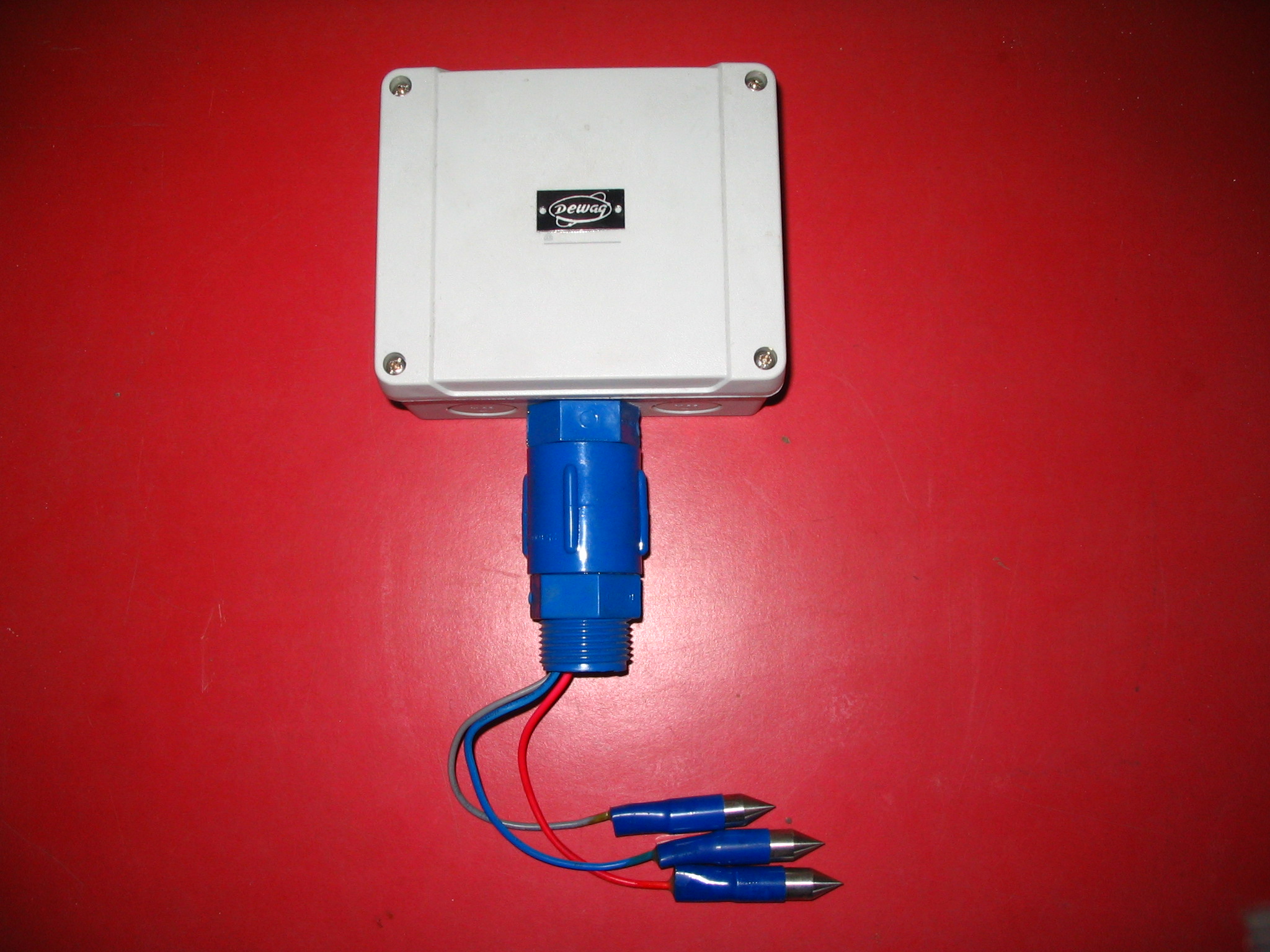

RS-02 Series Level Controller employs three electrodes to indicate levels at two points, viz. REFERENCE ELECTRODE, LOW LEVEL ELECTRODE, and HIGH LEVEL ELECTRODE. It consists of two parts viz. Sensor Unit and Control Unit.

Features

• Tri colored (Green, Yellow & Red) LEDs to display Power On, Low Level and High Level status
• Two changeover potential free relay contacts for each Low and High Levels
• Control and Sensor Units are housed in an IP65 enclosure
• Low and High Level detection points are adjustable on site
• Easy to install.

Dimensions

• Control Unit: 253mm width X 217mm length X 110mm height
• Sensor Unit: 120mm width X 140mm length X 70mm height

Technical Specifications

• Supply Voltage:- 230V AC, 50 Hz

Ordering Information

• Series: RS-02 Model: 08
